PROPERTIES OF BITUMEN 60/70

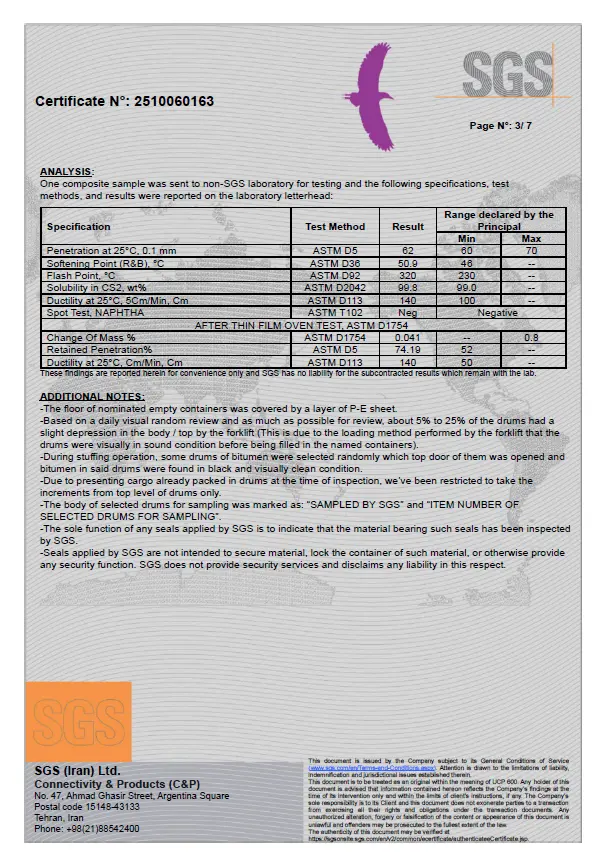

Bitumen 60/70 undergoes several crucial tests to ensure its quality and suitability for road construction and industrial applications. The following key tests assess its performance characteristics:

Penetration: The penetration test measures the hardness or softness of bitumen by determining the depth (in tenths of a millimeter) that a standard needle penetrates under a 100-gram load for 5 seconds at 25°C (77°F). A penetration grade of 60/70 means the needle penetrates between 6 and 7 mm. Lower penetration values indicate harder bitumen, which is generally preferred in hot climates to prevent excessive softening. This test helps engineers choose the correct grade of bitumen based on the climatic conditions and expected traffic loads.

2. Softening Point: The softening point test measures the temperature at which bitumen softens enough to allow a steel ball to pass through a defined distance in a Ring and Ball apparatus. The test is conducted by heating the bitumen at a controlled rate, and the temperature is recorded when the softened bitumen touches a metal plate. For Bitumen 60/70, the softening point typically falls between 49°C and 56°C. A higher softening point indicates lower susceptibility to temperature changes, making the bitumen more suitable for use in hot climates to prevent rutting and deformation under heavy traffic.

3. Ductility: The ductility test measures the ability of bitumen to stretch without breaking, indicating its flexibility. A standard bitumen sample is pulled apart at a constant speed of 5 cm/min at 25°C (77°F) until it breaks, and the distance (in centimeters) at which it fractures is recorded. Higher ductility is essential for bitumen to withstand thermal expansion and contraction without cracking, especially in regions with significant temperature variations. Bitumen 60/70 typically exhibits a ductility value above 75 cm, which ensures durability under varying stress conditions.

4. Viscosity: The viscosity test measures the flow characteristics of bitumen at high temperatures, ensuring proper workability during mixing and paving. It is tested at 135°C (275°F) for mixing and 60°C (140°F) for binder performance. Proper viscosity ensures that the bitumen can adequately coat aggregate particles during mixing and provides sufficient lubrication for compaction. Both excessively high and low viscosity can lead to mixing issues or poor compaction, reducing pavement strength. Bitumen 60/70 exhibits optimal viscosity to ensure stable and durable asphalt pavements.
