Oxidized Bitumen 110/30
MANUFACTURE OF OXIDIZED BITUMEN 110/30
Is produced by either Continuous or Staggered Blowing Process. Heated Penetration Grade Bitumen under controlled environment is blown with air which controls the Oil Content in the Bitumen while it oxidized. The different grades for suited applications produced are designated by two numbers to indicate the mid-points of their softening point and penetration ranges. Oxidized Bitumen 110/30 is the semi-solid oxidized grade of pure petroleum bitumen categorized in polycyclic aromatic hydrocarbons is normally used for different purposes in the construction business. Oxidized Bitumen 110/30 is the suitable grade of oxidized asphalt to use as bonding compounds as hot melt adhesive at an application rate of approximately 1 Kg/m3 to bond the preformed sheets together and to structure which is made by blowing Bitumen 60/70 by very hot air. We are one of the market leaders in Production, Exports, and brokerage different grades of Oxidized Bitumen with excellent quality. Our sales team is committed who understands your requirements due to many years of experience in supplying the bitumen products. If you are more interested in product information or need to place an order contact or inquire our Sales team. Bitumen is produced from petroleum and primarily used for the production of asphalt. Its consistency depends largely on temperature at hot temperatures it is viscous and larger chemical compounds such as aliphatics, petroleum resins, and asphaltenes move freely in the mass. Since asphalt and oxidized bitumen 110/30 are used for road construction as well as for waterproofing work, the longest possible product lifetime is desirable To slow down the aging of the material, reactions triggered by reactive gases, light, and heat must be minimized.
USES OF OXIDIZED BITUMEN 110/30
Blown Asphalt 110/30 is widely used as an anti-slip layer compound in the piling industry, for the manufacture of roofing felts, for sound dampening felts and under carriage sealant in the automobile industry, electric cable joint protection, joint filling compound, sealant compound and many others. It’s using as raw material for Bitumen coat, roofing, insulation also in Isolation bitumen membrane sheet. Also Oxidized Bitumen 110/30 uses in chemical, fuel, paints, lacquers, varnishes, paper-pulp-board, textile processing. In road construction, pavement, crack seal and repairmen, civil works, roofing also construction. In addition, it uses for sealing and insulating buildings, adhesive, construction materials additives, dust-binding, and coating. With a wide range uses in the insulating and impregnating agent, make rubber and plastic products. The Bitumen 110/30 products are for paving, roofing. Also used in asphalt-based paints for corrosion protection of metals, inlining public works structures, adhesives in electrical laminates, base for synthetic turf. Typical uses for Oxidized Bitumen 110/30 also include roofing, pipe coating, Portland cement pavement, hydraulic applications, paint manufacturing.
ADVANTAGE OF OXIDIZED BITUMEN 110/30
- High Purity Oxidized Bitumen (Oxidized Bitumen) without Using Gilsonite and any other impurities
- Excellent and permanent adhesive
- Low water absorption
- Chemically stable
- Flexibility
- Impact resistant
- High Resistant to soil stress
- High Resistant to cold stress
- High electrical resistance
- Quality assured manufacture.
- Conforms to ASTM standards with regards to softening point and penetration.
- Competitive and fair price
- Prompt and on time Delivery
- Third party Inspection by Customer request
- Weatherproof Oxidized Bitumen packaging for flexibility of storage.
- Various Kind of Blown Bitumen packing according to Customer’s Purpose. (Meltable Bag, Kraft Bag, Carton Box, Block, Keg, Drum)
- High Monthly Capacity for producing Oxidized Bitumen.
- Oxidized Bitumen meltable polyamide bag packages wrapping can be melted in conventional boilers without the need for removal
- Blown Asphalt Carton Boxes packing have non-stick insider layer that remove easily on Bitumen
- Full Coverage and support
TECHNICAL ADVANTAGE OF OXIDIZED BITUMEN 110/30
- Durability
- Flexibility
- Water-Resistant
- Chemical Stability
APPLICATION OF OXIDIZED BITUMEN 110/30
Bitumen is widely used as an anti-slip layer compound in the piling industry, for the manufacture of roofing felts, for sound dampening felts, and under carriage sealant in the automobile industry, electric cable joint protection, joint filling compound, sealant compound, and many others. The vast majority of bitumen is used by the construction industry, as a constituent of products used in paving and roofing. Excellent waterproofing characteristics and thermoplastic behavior make it ideal for a wide range of applications. At elevated temperatures (typically between 100 and 2008C) it acts like a viscous liquid and can be mixed with other components and manipulated and formed as required. Once Bitumen 110/30 cooled, it is an inert solid that is durable and hydrophobic (repels water). Oxidized Grade Bitumen shall be broken up into small pieces and heated slowly to the application temperature of 220ºC to 230ºC. Oxidized Bitumen should be heated at double temperature against the softening point to be able to have flow and viscosity. Blown asphalt also is the aesthetic adhesive substrate for asphalt membranes. In addition metal and concrete protective coating under atmospheric conditions. Oxidized Bitumen 105-35 is used for coating pipelines. Also impregnated of the coating of papers and boards. Bonding agent for tiles and mastic also bonding agent for cork plates and adhesive for roofing felts. Furthermore, Blown bitumen is adhesive for laminated boards for protection from electrical wires. Hard Bitumen grades are also suitable for sealing saw cuts and joints where there is expected to be a minimum amount of moving in the joint. Their wide temperature range prevents bleeding in high-temperature uses. Oxidized asphalt can also be used in industrial usages like roofing, flooring, mastics, pipe coatings, and electrical roles.
ASPHALT CONTENTS
The bitumen content of asphalt is one of its most important characteristics. Using an Oxidized Bitumen 110/30 content lower than required may result in a dry, stiff mixture that is difficult to place and compact and will be prone to cracking and other durability problems while possessing lower resistance to fatigue cracking. Too much bitumen is likely to make the asphalt uneconomic because of the relatively high cost of bitumen and, in performance terms, it is likely to make the asphalt prone to bleeding and deformation. Asphalt content of bitumen 110-30 depends on the process of the production line. if heated too much it may convert to coke.
STORANGE AND HANDLING
Heating of packaged bitumen is a critical phase in most of the final uses. Typically, the packaged material is heated and melted in boilers out on site. However, control at the heating phase is very important in terms of health and safety as well as in maintaining the quality of the product. Note must be taken of the maximum safe handling temperature of 230 C and this should not be abused. Bitumen is a poor conductor of heat, consequently, control of the heating phase is of paramount importance. The Oxidized Bitumen material should be broken up prior to placement in the boiler. This exposes a larger surface area to the heat and encourages a more even heating regime. Without the larger exposed surface area, aggressive heating at the base and sides of the boiler may well result in localized overheating, altering the characteristics of the RAHA OIL modified bitumen and potentially causing thermal cracking of the bitumen, creating the release of low lash vapors. The flash point of the oxidized bitumen then becomes irrelevant; as these low flash vapors determine the fire risk. Melted bitumen should not be left in the boiler and reheated from cold, as there is then a high potential for localized overheating around the heating area (lack of convection means poor heat transfer) and potential development of a pressurized pocket of low flash vapors. Be aware of the placement of any temperature monitoring or control devices. As a result of the poor thermal conductivity of the bitumen, a thermometer in the bitumen some distance from the heat source could read significantly different (even hundreds of degrees) from the true temperature of the bitumen near the heat source. For Health and Safety information, please make reference to the relevant MSDS.
HEALTH & SAFETY
Workers should wear protective masks, gloves, and goggles during application. The asphalt can be removed from equipment and tools with kerosene or gasoline. Care should be taken when heating Oxidized Bitumen 110/30 to avoid over heating.
PACKING OF OXIDIZED BITUMEN 110/30
Paking of Oxidized Bitumen 110/30

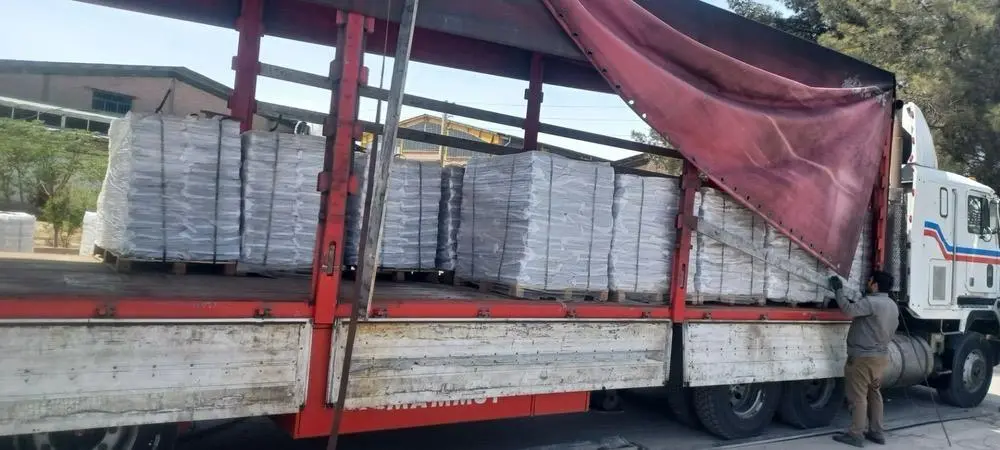

RAHA OIL is the manufacturer of oxidized Bitumen 110/30 in various packing, including bitumen 110/30 is available in 20 & 50 Kg Kraft Paper Bags / Poly Amide Bags, 25 Kg Carton box & 200 Kg Steel Drums. In addition, oxidized bitumen packing also palletize, 40 bags can stack on the pallet. 20 pallet can load to the 20ft container.
TECHNICAL DATA SHEET OF OXIDIZED BITUMEN 110/30
| Bitumen 110/30 | TEST METHOD | UNIT | SPECIFICATION |
|---|---|---|---|
| Specific gravity @ 25/25 °c | ASTM D70 | Kg/cm³ | 1.05 approx |
| Penetration @ 25°c | ASTM D5 | mm/10 | 10-25 |
| Softening point °c | ASTM D36 | °C | 100-120 |
| Ductility @ 25°c | ASTM D113 | cm | 2 Min |
| Loss on heating(wt) % | ASTM D6 | wt % | 0.2 max |
| Flashpoint °c | ASTM D92 | °C | 230 min |
| Solubility is CS2(wt) % | ASTM D4 | wt % | 99 max |
