Bitumen penetration 30/40

BITUMEN PENETRATION 30/40

Bitumen Penetration 30/40 is a standard Penetration Grade of Bitumen ASTM D 946M, typically used as a Paving Grade Bitumen suitable for road construction and for the production of asphalt pavements with superior properties particularly in road and airport constructions and other similar applications. This grade of Bitumen is mainly used in the manufacture of hot mix asphalt for bases and wearing courses. Penetration Grades of Bitumen is produced from Vacuum Residue, which is blown by hot in the bitumen Blowing Unit; The fully automated process runs continuously resulting in a constant and homogeneous finished product quality. Bitumen Penetration 30/40 is produce by process of vacuum Bottom (VB) and air in the reactor. And due to the control of the process conditions, we reaching to pure quality of penetration grade bitumen 30/40 which has a penetration between 30/40. Bitumen is specified by the penetration and softening point test. The penetration grade bitumen 30/40 has a thermoplastic property which causes the material to soften at high temperatures and to harden at lower temperatures. 30/40 is one of the most used asphalt grade for paving constructions.

USAGE OF BITUMEN 30/40

Bitumen Penetration 30/40 provide better adhesion between aggregate and binder, thus constructing vastly stable roads and pavements. They are highly resistant to deformation from seasonal temperature variation. They are produced as a residual product through the distillation of crude oil, making the Bitumen 30/ 40 extremely durable for a long-running performance. They are scientifically proven to be free from hydrocarbons, which make them non-toxic to human health. The bitumen 30/40 production’s cost and repair cost are relatively low, thus making it very economical. These bitumen have a noise reductive property, thus producing incredibly low noise while cruising. They provide color variety properties as pigments can be added to get your desired color. The grade of bitumen have the ability to resist de-icing materials which keep the roads in pleasant condition. They allow stage construction, which is quite useful when there are financial constraints or the traffic on the roads is greater than estimated. These bitumen offers excellent visibility and skid resistance, which make the roads safe. They have an unbelievably high state of beauty, thus making them very precious. The wholesalers and retailers will not be disappointed, as they will be provided with different forms and quantities of bitumen . It is proven that they are the least energy-intensive construction materials around.

PROPERTIES OF GRADE 30/40

The Bitumen Penetration 30/40 supplied by our company is produced from the vacuum residue (short residue) feedstock. Penetration grade bitumens are specified by the penetration and softening point test. Penetration grade bitumens have a thermoplastic property which causes the material to soften at high temperatures and to harden at low temperatures. The temperature-vs-stiffness relationship of bitumen is dependent on the source of crude oil and the method of refining. Penetration grade 30/40 is semi-hard penetration grade asphalt using as paving grade bitumen suitable for road construction and repair also for the production of asphalt pavements with below technical specifications. This grade of bitumen is mainly used in the manufacture of hot mix asphalt for bases and wearing courses.

APPLICATION OF PENETRATION 30/40

Bitumen Penetration 30/40 is suitable for road construction and repair for the asphalt pavements with superior properties. This type of bitumen used in the manufacture of hot mix asphalt for bases and wearing courses.

Road Construction: Penetration grade 30/40 is commonly used in road construction for asphalt pavements. It serves as a binder in the asphalt mix, providing durability and flexibility to the road surface. The penetration value influences the bitumen’s ability to adhere to and coat aggregates in the asphalt mix.
Asphalt Emulsions: This type of bitumen can be used to produce asphalt emulsions. Asphalt emulsions are water-based bitumen dispersions used for various road maintenance activities, such as surface treatments, tack coats, and chip seals.
Roofing: Penetration grade 30/40 may be used in the roofing industry for manufacturing roofing felt and shingles. Bitumen-based roofing materials provide waterproofing and weatherproofing properties to buildings.
Waterproofing: Bitumen 30/40 is employed as a waterproofing agent for various structures, including basements, foundations, and retaining walls. It creates a durable and impermeable barrier, preventing water infiltration.
Pipe Coating: In the oil and gas industry, penetration grade 30/40 bitumen is used for coating pipes. The bitumen coating provides corrosion resistance and insulation, protecting pipelines from environmental elements.
Pavement Sealants: Bitumen 30/40 may be used in pavement sealants applied to existing asphalt surfaces. These sealants enhance the durability of the pavement and protect against weathering and aging.
Adhesives and Binders: Bitumen 30/40 serves as a key component in the production of adhesives and binders. It provides bonding strength and acts as a binding agent in various applications.
Soundproofing: Bitumen is used in the manufacturing of soundproofing materials for buildings and infrastructure. Its ability to absorb sound contributes to reducing noise transmission.
Construction Mastics: This type of bitumen may be used in construction mastics, which are flexible, adhesive compounds used for sealing joints and cracks in construction.

It’s important to note that the specific application of penetration grade 30/40 bitumen can vary based on regional specifications, climate conditions, and project requirements. The penetration value influences the bitumen’s hardness and consistency, affecting its suitability for different applications.

THE 4 MAJOR TEST OF BITUMEN 30/40

1.Penetration test: It measures the hardness or softness of Bitumen by measuring the depth in tenths of a millimeter to which a standard loaded needle will penetrate vertically in 5 seconds. BIS had standardised the equipment and test procedure. A grade of 30/40 bitumen means the penetration value is in the range 30 to 40 at standard test conditions. In hot climates, a lower penetration grade is preferred.

2.Softening Point Test: Softening point denotes the temperature at which the bitumen attains a particular degree of softening under the specifications of test. The test is conducted by using Ring and Ball apparatus. Also Temperature is noted when the softened bitumen touches the metal plate which is at a specified distance below. Generally, higher softening point indicates lower temperature susceptibility and is preferred in hot climates.

3.Ductility Test: Ductility is the property of bitumen that permits it to undergo great deformation or elongation. Ductility is defined as the distance in cm, to which a standard sample or briquette of the material will be elongated without breaking.

4.viscosity test: Viscosity denotes the fluid property of the bituminous material and it is a measure of resistance to flow. At the application temperature, this characteristic greatly influences the strength of resulting paving mixes. Low or high viscosity during compaction or mixing has been observed to result in lower stability values.

GURANTY AND SAFETY OF PENETRATION 30/40

Our Company guaranty the quality of Bitumen penetration grade 30/40 with the arrangement of the international inspector to check quality and quantity of the asphalt penetration Grade 30/40 during the loading to the vessel and controlling the production by QC by batch test report before shipping. Our Company guarantees the quality to meet with ASTM.

PACKING OF BITUMEN 30/40

Bitumen grade is commonly packed in new steel drums, 150, 180 & 220 Kg barrels and Jumbo Bags or Bitubag and 10 & 20 kg Tubular cartons.

Bitumen 30/40 in 1 MT Jumbo Bag with a Steel Cage and Pallet:

Bitumen 30/40 in 1 MT Jumbo Bag without cage and pallet:

Loading 20 MT in 40 ft Container

Bitumen 30/40 in 1300 Kg Jumbo Bag:

Bitumen 30/40 in 375 Kg Bitubag:

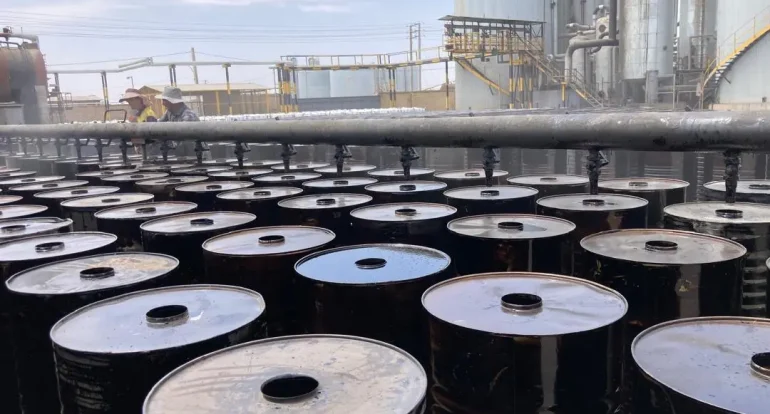

Bitumen 30/40 in 180kg New Steel Drum:

Loading 110 Drum in 20 ft

Bitumen 30/40 in Bulk in tanker:

Loading 24 – 25 MT in tanker truck

Bitumen 30/40 Bulk in Flexi Bag:

Loading 20 MT in Bitumen Flexi Bag

Bitumen 30/40 Bulk in vessel:

Loading 2000 to 20,000 MT in Bitumen Carrier

TECHNICAL DATA SHEET OF BITUMEN PENETRATION 30/40

BITUMEN 30/40	TEST METHOD	UNIT	SPECIFICATION
Specific gravity @ 25/25 °c	ASTM D70	Kg/cm³	1.01/1.06
Penetration @ 25°c	ASTM D5	mm/10	30-40
Softening point °c	ASTM D36	°C	55-63
Ductility @ 25°c	ASTM D113	cm	100 min
Loss on heating(wt) %	ASTM D6	wt %	0.2 max
Drop in penetration after heating %	ASTM D5-D6	%	20 max
Flashpoint °c	ASTM D92	°C	250 min
Solubility is CS2(wt) %	ASTM D4	wt %	99.5 max
Spot test	A.A.S.H.O.T 102	-	Negative
