Bitumen 120/150 in Drum
BITUMEN PENETRATION 120/150 FEATURES
Bitumen Penetration 120/150 is used as a Paving Grade Bitumen suitable for road construction and for the production of asphalt pavements with superior properties, especially in road and airport constructions and other similar applications. It is a standard Penetration Grade of Bitumen according to ASTM D946M. Hot mix asphalt for bases and wearing courses is mostly made using this grade of bitumen. Vacuum residue is used to make Penetration Grades of Bitumen, which is then heated and blown by hot air in the Blowing Unit. The completely automated process produces a consistent, homogenous end product.
Bitumen Penetration 120/150 is a type of bitumen that is created when the vacuum bottom (the feedstock for making bitumen that is derived from distillation tower residue in vacuum oil refineries) is oxidized at the bitumen production unit in such a way that its penetration point (a type of test to determine the hardness of bitumen) becomes between 120 and 150. Bitumen 120/150 is compatible with all types of aggregates and has a high flash point and good adhesion capabilities.
BITUMEN’S CHARACTERISTICS 120/150
Pure petroleum grade bitumen, produced from a vacuum bottom by the passage of hot air, is the penetration grade bitumen that our company supplies. After being cracked and the hydrocarbons were removed, the bitumen that our company supplies is made from the leftover crude oil. The softening point of Bitumen Penetration Grade 120/150 is between 38 and 45 °C, and its penetration ranges from 120 to 150 desi-millimeters. The thermoplastic quality of penetration grade bitumen 120/150 makes it similar to a synthetic resin substance that softens when heated and hardens when cooled. Compared to other grades, bitumen 120/150 has a fairly strong viscosity.
BITUMEN PENETRATION 120/150 USES
Asphalt Penetration Grade 120/150 is appropriate for asphalt pavements with outstanding qualities and for building roads. Hot mix asphalt for bases and wearing courses is made with this kind of bitumen.
- Road Construction: Bitumen 120/150 is widely used in road construction as a binder in asphalt mixes. It provides the necessary cohesion and flexibility to the asphalt, contributing to the durability and stability of road surfaces.
- Asphalt Emulsions: This type of bitumen can be used to produce asphalt emulsions. Asphalt emulsions are water-based bitumen dispersions employed for road maintenance activities, such as chip seals, surface treatments, and tack coats.
- Roofing: Bitumen 120/150 is utilized in the roofing industry for manufacturing roofing felt, shingles, and other roofing materials. Bitumen-based roofing materials offer waterproofing and weatherproofing properties.
- Waterproofing: The waterproofing industry uses Bitumen 120/150 for waterproofing applications, including the treatment of foundations, basements, and other structures. It forms a durable and impermeable layer, preventing water ingress.
- Pipe Coating: In the oil and gas sector, Bitumen 120/150 is applied as a coating for pipes to provide corrosion resistance and insulation. This protective coating helps safeguard pipelines from environmental factors.
- Pavement Sealants: Bitumen 120/150 can be used in pavement sealants applied to existing asphalt surfaces. These sealants enhance the longevity of pavements and protect against weathering and aging.
- Adhesives and Binders: Bitumen 120/150 serves as a crucial component in the production of adhesives and binders. It imparts bonding strength and acts as a binding agent in various industrial applications.
- Soundproofing: Bitumen 120/150 is employed in the manufacturing of soundproofing materials for buildings and infrastructure. Its ability to absorb sound contributes to reducing noise transmission.
- Construction Mastics: Bitumen 120/150 may be used in construction mastics, which are flexible, adhesive compounds applied to seal joints and cracks in construction projects.
The specific use of Bitumen 120/150 can vary based on regional specifications, climate conditions, and project requirements. It is important to consider the penetration value, which influences the bitumen’s hardness and consistency, affecting its suitability for different applications.
APPLICATION OF ASPHALT 120/150
This grade of bitumen is also mainly used in the manufacture of hot mix asphalt. also, Bitumen is suitable for road construction and repair for asphalt pavements with superior properties. Bitumen is used for hot mixed asphalt because of the properties of very strong viscosity compared to other grades. Also used in specialized applications like airport runways and also in very heavy traffic volume roads in coastal cities in the country.
THE 4 MAJOR TEST OF ASPHALT 120/150
1.Penetration test: It measures the hardness or softness of bitumen by measuring the depth in tenths of a millimeter to which a standard loaded needle will penetrate vertically in 5 seconds. BIS had standardised the equipment and test procedure. A grade of 120/150 asphalt means the penetration value is in the range 120 to 150 at standard test conditions. In hot climates, a lower penetration grade is preferred.
2.Softening Point Test: Softening point denotes the temperature at which the bitumen attains a particular degree of softening under the specifications of test. The test is conducted by using Ring and Ball apparatus. Also Temperature is noted when the softened bitumen touches the metal plate which is at a specified distance below. Generally, higher softening point indicates lower temperature susceptibility and is preferred in hot climates.
3.Ductility Test: Ductility is the property of bitumen that permits it to undergo great deformation or elongation. Ductility is defined as the distance in cm, to which a standard sample or briquette of the material will be elongated without breaking.
4.viscosity test: Viscosity denotes the fluid property of the bituminous material and it is a measure of resistance to flow. At the application temperature, this characteristic greatly influences the strength of resulting paving mixes. Low or high viscosity during compaction or mixing has been observed to result in lower stability values.
GUARANTY OF ASPHALT 120/150
RAHA OIL guaranty the quality of Bitumen penetration grade 120/150 with the arrangement of the international inspectors to check the quality and quantity of the Bitumen Penetration grade 120/150 during the loading to the vessel and controlling the production by QC by batch test report before shipping. Our Company guarantees the quality to meet with ASTM. Our company guarantees that the Bitumen Grade 120/150 is produced in compliance and conformity to International Standards such as AASHTO M20-70 & ASTM D946, also, meets the following specification requirements.
PACKING OF BITUMEN 120/150
Paving Bitumen 120/150 is commonly packed in new steel drums, 150, 180 & 220 Kg barrels and 1MT and 500Kg Jumbo Bags or 300kg Bitubag. Likewise, the rest of the grades are ready to load Ex-work bulk120/150 Bitumen by truck.

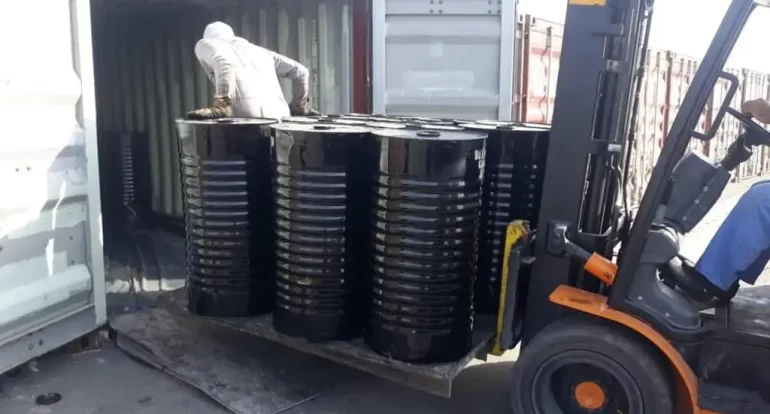

Bitumen 120/150 in 180kg New Steel Drum:
Loading 110 Drum in 20 ft
Bitumen 120/150 in Bulk in tanker:
Loading 24 – 25 MT in tanker truck
Bitumen 120/150 Bulk in vessel:
Loading 2000 to 20,000 MT in Bitumen Carrier
TECHNICAL DATA SHEET OF BITUMEN 120/150
| BITUMEN 120/150 | TEST METHOD | UNIT | SPECIFICATION |
|---|---|---|---|
| Specific gravity @ 25/25 °c | ASTM D70 | Kg/cm³ | 1000/1050 |
| Penetration @ 25°c | ASTM D5 | mm/10 | 120-150 |
| Softening point °c | ASTM D36 | °C | 38 min |
| Ductility @ 25°c | ASTM D113 | cm | 100 min |
| Loss on heating(wt) % | ASTM D6 | wt % | 0.5 max |
| Drop in penetration after heating % | ASTM D5-D6 | % | 20 max |
| Flashpoint °c | ASTM D92 | °C | 218 min |
| Solubility is CS2(wt) % | ASTM D4 | wt % | 99 max |
| Spot test | A.A.S.H.O.T 102 | - | Negative |
