Bitumen Penetration 100/150
DESCRIPTION OF BITUMEN PENETRATION 100/150
Bitumen Penetration 100/150 is a standard penetration grade Bitumen usually used as a Paving Grade Bitumen suitable for road construction and for the production of asphalt pavements with superior properties. This grade of Bitumen is mainly used in the manufacture of hot mix asphalt for bases and wearing courses. Penetration Grade Bitumen supplied by RAHA OIL is petroleum grade bitumen, manufactured from fractional / vacuum distillation of crude oil. The Bitumen supplied by RAHA OIL is produced from vacuum residue (short residue) feedstock. Penetration Grade bitumens are specified by the penetration and softening point test. The designation is by penetration range only. The penetration grade bitumens have a thermoplastic property which causes the material to soften at high temperatures and to harden at lower temperatures. This unique temperature/ viscosity relationship is important when determining the performance parameters such as the adhesion, rheology, durability and application temperatures of bitumen.
Bitumen Penetration 100/150 is manufactured with selected crude oils inefficient production processes that are undertaken in accordance with quality management standards EN ISO 9001. The consistently high quality is based on the meticulous selection of raw material and careful processing. Constant quality control and additional comprehensive tests ensure the unproblematic use of Bitumen Penetartion 100/150 in the asphalt mixing plant. Bitumen Penetration Grade 100/150 is a standard penetration grade Bitumen usually used as a Paving Grade Bitumen suitable for road construction and for the production of asphalt pavements with superior properties. This grade of Bitumen is mainly used in the manufacture of hot mix asphalt for bases and wearing courses. Penetration Grade Bitumen supplied by RAHA OIL is petroleum grade bitumen, manufactured from fractional / vacuum distillation of crude oil. The designation is by penetration range only. The penetration grade bitumens have a thermoplastic property which causes the material to soften at high temperatures and to harden at lower temperatures. This unique temperature/ viscosity relationship is important when determining the performance parameters such as the adhesion, rheology, durability, and application temperatures of bitumen. Penetration Grade Bitumen is a standard bitumen usually used as a Paving Grade Bitumen essential for road construction and for the production of asphalt pavements with superior properties, and it’s very important once it bounds the aggregates and creates a unique cohesion and stability to the bituminous mix. If you are more interested in product information or need to place an order contact or inquire about our Sales team.
PROPERTIES OF ASPHALT 100/150
Penetration grade bitumen 100-150 supplied by RAHA OIL is pure petroleum grade bitumen, manufactured from vacuum bottom by passing hot air. The bitumen supplied by RAHA OIL is produced from remain of crude oil after cracking and removing hydrocarbon. bitumen 100-150 has penetration between 100~150 desi-millimeter and the softening point between 39~ 47 C. Penetration Grade Bitumen 100-150 is produced from the vacuum distillation of crude oil and is classified according to its penetration range. Bitumen 100/150 is a thermoplastic material which softens gradually as it is heated and hardens as it is cooled. This unique temperature/viscosity relationship is important when determining its performance parameters and application temperatures. Unlike modified binders, Bitumen Penetration acts as a Newtonian fluid at high in-service temperatures, which allows one to establish a temperature/viscosity relationship.
APPLICATION OF ASPHALT GRADE 100/150
The bitumen 100/150 is a penetration grade, with penetration between 100 and 150. Which is mostly used in road construction, asphalt pavement, and manufacturer of hot-mix asphalt. 100/150 Penetration Grade Bitumen is used in the construction of single seals, double seals, and Cape seals, either as a tack coat or penetration spray. It is also used as the base bitumen for the manufacture of the majority of emulsions and polymer modified binders. Also Paving Grade Bitumen 100/150 produced by RAHA OIL provides very high performance in terms of resistance to aging, plasticity, and behavior at low temperatures. Thanks to those properties it’s employed to produce bituminous mixes constituting flexible structure for the paving of roadways, runways, pavement, track race, and landing platform.
- It has high-performance even in industrial sectors preparation of mixes for the production of membranes with SBS technology.
- The product is also applicable in the formulation process of bituminous emulsions, waterproofing membranes, oxidated bitumens, bituminous paints, special lubricants, and mastics
GUARANTY AND SAFETY OF PENETRATION 100/150
RAHA OIL guaranty the quality of bitumen penetration grade 100/150 with the arrangement of the international inspectors to check the quality and quantity of the Penetration 100/150 during the loading to the vessel and controlling the production by QC by batch test report before shipping. The Bitumen Grade 100/150 is produced in compliance and conformity to International of European Standard DIN EN 12591:99, also meets the requirements of the following specification.
PACKING OF BITUMEN 100/150

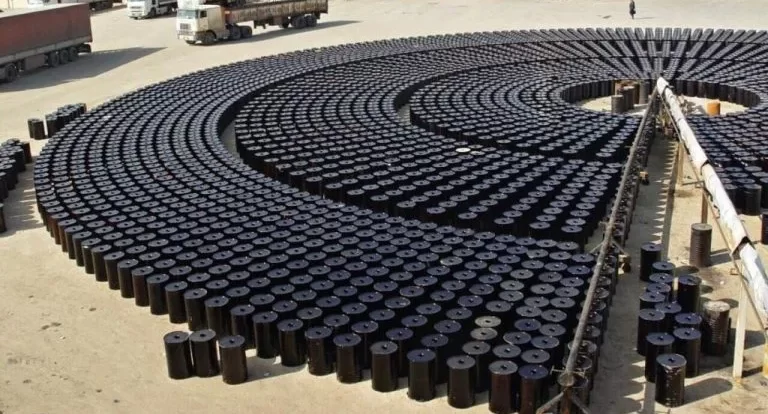

Paving Bitumen 100/150 is commonly packed in new steel drums, 150, 180 & 220 Kg barrels. Likewise, the rest of the grades are ready to load Ex-work bulk Bitumen by truck.
Bitumen 100/150 in 180kg New Steel Drum:
Loading 110 Drum in 20 ft
Bitumen 100/150 in Bulk in tanker:
Loading 24 – 25 MT in tanker truck
Bitumen 100/150 Bulk in vessel:
Loading 2000 to 20,000 MT in Bitumen Carrier
TECHNICAL DATA SHEET OF BITUMEN 100/150
| BITUMEN 100/150 | TEST METHOD | UNIT | SPECIFICATION |
|---|---|---|---|
| Penetration – 25°C, 100g, 5s | EN 1426 | mm | 100-150 |
| Softening Point (Ring & Ball) | EN 1427 | °C | 39/47 |
| Kenematic Viscosity @ 135⁰C | EN 12595 | mm2/s | 175 |
| Solubility in Xylene | EN 12592 | % | 99 Min |
| Flashpoint (Cleveland Open) | EN 22592 | °C | 230 Min |
| Recistance to Hardening at 163 °C | |||
| Change in mass (m/m) | EN12607-1 | % | 0.8 Max |
| Retained Penetration 25°C, 100g, 5s (% of original) | EN 1426 | % | 43 Min |
| Increase in softening point | EN 1427 | °C | 10 Max |
